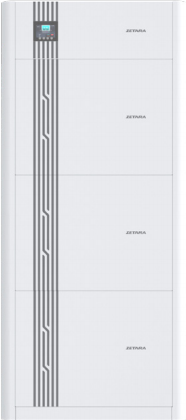

Array – Vertical (Low-volt)

Categories: ,
Description


Name Junction box Module Battery base
Dimension:W*D*H (mm) 674*170*210 674*170*420 674*170*50
Weight (kg) 12.5 54 2.25
Type/Parameter Array-VL-02

（ZRLVESS5KVS-02）

 Array-VL-03

（ZRLVESS5KVS-03）

 Array-VL-04

（ZRLVESS5KVS-04）

 Array-VL-05

（ZRLVESS5KVS-05）

 Array-VL-06

（ZRLVESS5KVS-06）
Battery Module Type Array-VL（ZRLVESS5KVS）


System Schematic





 上E
Module Number 2 3 4 5 6
Rated Voltage（V） 51.2
Voltage Range（V） 44.8~56
Rated Energy（Wh） 10240 15360 20240 25600 30720
Max. Discharge Current（A） 200
Dimension:W*D*H (mm) 674*170*1100 674*170*1520 674*170*1100 +674*170*890 674*170*1100  +674*170*1310 674*170*1520  +674*170*1310
Weight（Kg） 122 176 233 290 343
Environment Parameter
IP IP55
Charge Temperature Range(℃) 0~45
Discharge Temperature Range(℃) -20~60
Installation Method Floor-mounted
Service Life
Cycle Life (Time) > 6000（0.5C @25℃,80% DOD）
Design Life (Year) 15
Certification
Safety & Certification UL1973 , CE, IEC62619, (CUL, UL9540 in progress）
Transportation UN38.3
